| ชื่อแบรนด์: | ANS |
| เลขรุ่น: | EVA03B |
| ขั้นต่ำ: | 1 |
| รายละเอียดการบรรจุ: | 15.7*15*3.15(นิ้ว) |
| เงื่อนไขการจ่ายเงิน: | L/C, T/T, Western Union |
3kw Portable Electric Car Charger With Adjustable Current And Delay Charging
Overview

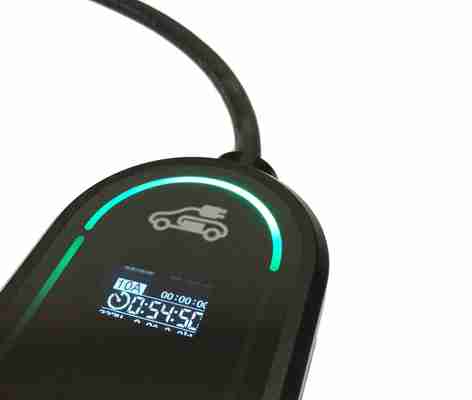

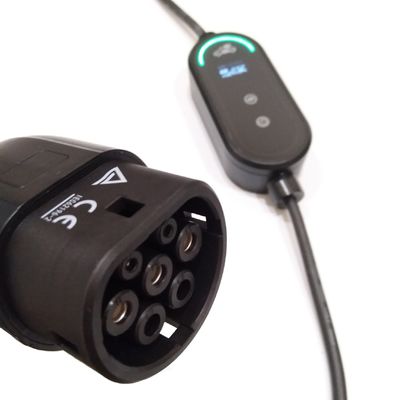

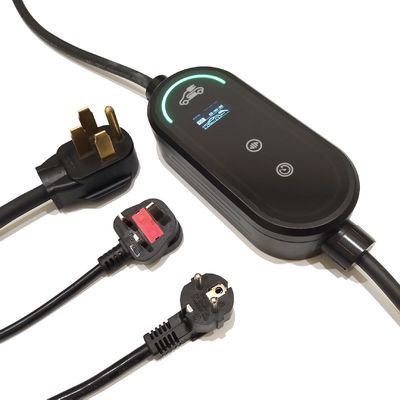

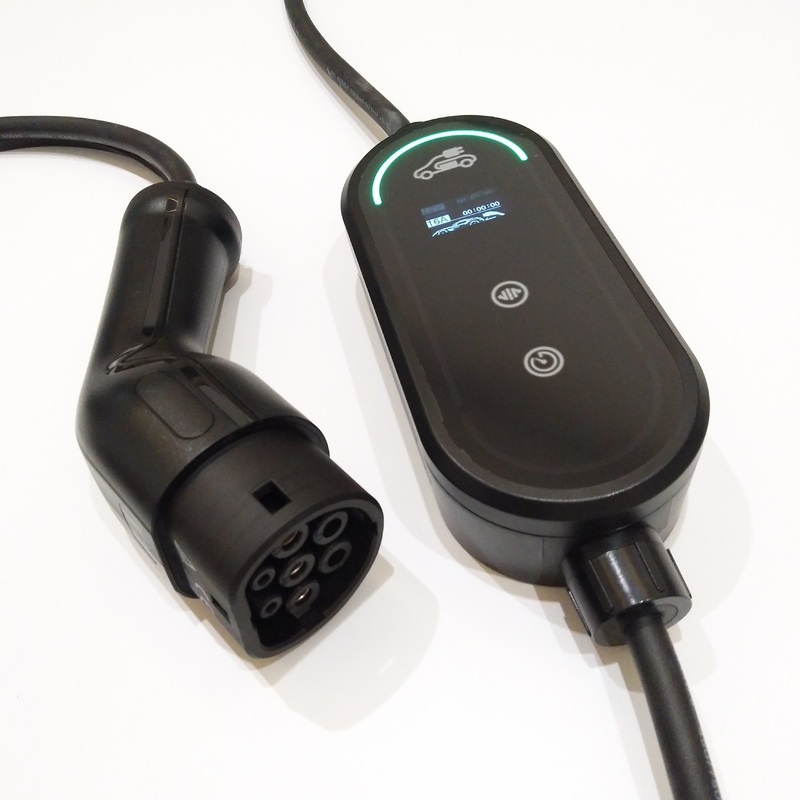

The EVA03B 3kW Portable Electric Car Charger With Adjustable Current And Delay Charging is the ideal entry-level solution for safe and intelligent charging at home or on the go. It combines essential smart features with robust safety in a compact, lightweight design.
Adjustable Current: Customize charging from 6A to 16A to match any standard household socket, preventing circuit overload.
Delay Charging Setting: Program charges to start during off-peak hours, maximizing electricity cost savings.
LED Light & Touch Key: An intuitive interface with clear indicators for easy operation in any condition.
Built-in RCD Type B: Offers the highest level of protection against electrical hazards, including smooth DC fault currents, ensuring complete peace of mind.
Ideal for daily use with smaller EVs or as a reliable backup charger.
Specificaiton
| Product Model EVA03B | |
| Input/Output voltage | AC 110V/230V |
| Input frequency | 50/60Hz |
| Max.output power | 1 - Phase up to 3.7kW(@230V 16A) |
| Max.output current | 16A for 1 - Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤2.1kg |
| Colour&Material | Black;Tempered Glass,PC |
Features
LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
LED Indicators
Installation cases
Packaging
Our Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
|
